| Working distances | 3 ... 15 m |
|---|---|
| Detection angle | 90° |
| PIR target detection speed | 0.2 ... 5 m/s |
| Optical noise immunity | not less than 6500 Lux |
| Pet immunity | movement of animals weighing up to 20 kg |
| Mounting heights | 0.9 ... 1.10 m |
| Power | 3V, two CR123A lithium batteries, included in the package |
| Service life of battery | up to 5 years |
| Radio frequency | ISM wireless interface with multiple channels: ITU region 1: 868.0...868.6 MHz (EU, UA), 869.0...869.4 (MA), 100 kHz bandwidth, 20 mW max, distance - up to 4800m (in open space); ITU region 3 (AU): 916.5...917 MHz, 100 kHz bandwidth, 20 mW max, distance to devices - up to 4800 m (in open space). |
| Communication | Two-way, encrypted, with sabotage (jamming) detection. The encryption key is 256 bits |
| Operating temperature range | -20°C ... +55°C |
| Permissible humidity | up to 95% |
| Environmental class | III (according to EN 50131-1) |
| Security grade | 2 |
| Dimensions no hood | 180 x 70 x 62.5 mm |
| Dimensions with a hood | 183.8 x 77.2 x 88.6 mm |
| Case colour | white |
| Weight | 0,29 kg |
| Protection class | IP55 |
| Complete set | 1. U-Prox PIR Outdoor V2; 2. Two CR123A batteries (pre-installed); 3. Protective hood; 4. Mounting kit; 5. Short user manual |

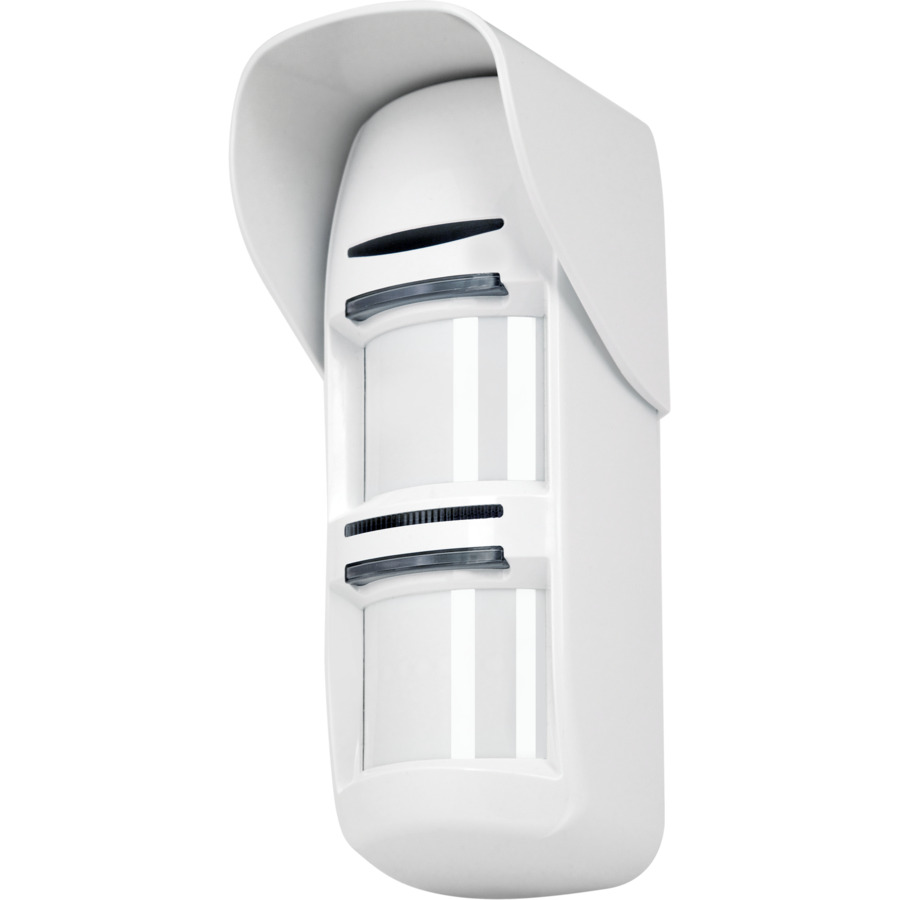

PIR OUTDOOR V2 WH
U-PROX ārējais bezvadu kustības detektors (PIR) 3-15m 90° PET 20kg 868MHz
-50%
PIR OUTDOOR V2 WH
U-PROX ārējais bezvadu kustības detektors (PIR) 3-15m 90° PET 20kg 868MHz
Kods: 012643
Noliktavā: Daudz
66.54 € / gab
133.09 € / gab
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
Preces rādītāji
Iekārtas parametri
Iekārtu kategorija
Āra aizsardzība
Kopējie parametri
Materiāls
Plastikāts
Krāsa
Balta
