| Zones | 2 |
|---|---|
| Maximum working distance | 12 m |
| Detection angle | 88° |
| PIR target detection speed | 0.3 ... 3 m/s |
| Optical noise immunity | not less than 6500 Lux |
| Pet immunity | movement of animals weighing up to 20 kg |
| Sound Sensor Activation Range | 8 m |
| Detection angle | 120° |
| Types of glass | The ordinary, patterned, tempered, laminated, reinforced, protected by polymer film of A1, A2, A3 classes, double-glazed windows 4x16x4 |
| Glass thickness | 2 mm . . . 8 mm |
| Glass dimension | 0.5 m x 0.5 m .... 3.0 m x 3.0 m |
| Power | 3V, CR123A lithium battery included |
| Service life of battery | up to 5 years old |
| Radio frequency | ISM wireless interface with multiple channels: ITU region 1: 868.0...868.6 MHz (EU, UA), 869.0...869.4 (MA), 100 kHz bandwidth, 20 mW max, distance - up to 4800m (in open space); ITU region 3 (AU): 916.5...917 MHz, 100 kHz bandwidth, 20 mW max, distance to devices - up to 4800 m (in open space). |
| Communication | Two-way, encrypted, with sabotage (jamming) detection. The encryption key is 256 bits |
| Operating temperature range | -10°C ... +55°C |
| Permissible humidity | up to 75% |
| Environmental class | II (according to EN 50131-1) |
| Security grade | 2 |
| Dimensions | 90 х 60 х 34.35 мм |
| Dimensions | 90 x 60 x 41.6 mm |
| Dimensions & weight with a wall bracket | 90 x 60 x 48.84 mm |
| Case colour | white, black |
| Weight | 0,15 kg |
| Complete set | 1. U-Prox PIR Combi; 2. CR123A battery (pre-installed); 3. Wall bracket; 4. Angle bracket; 5. Mounting kit; 6. Short user manual |

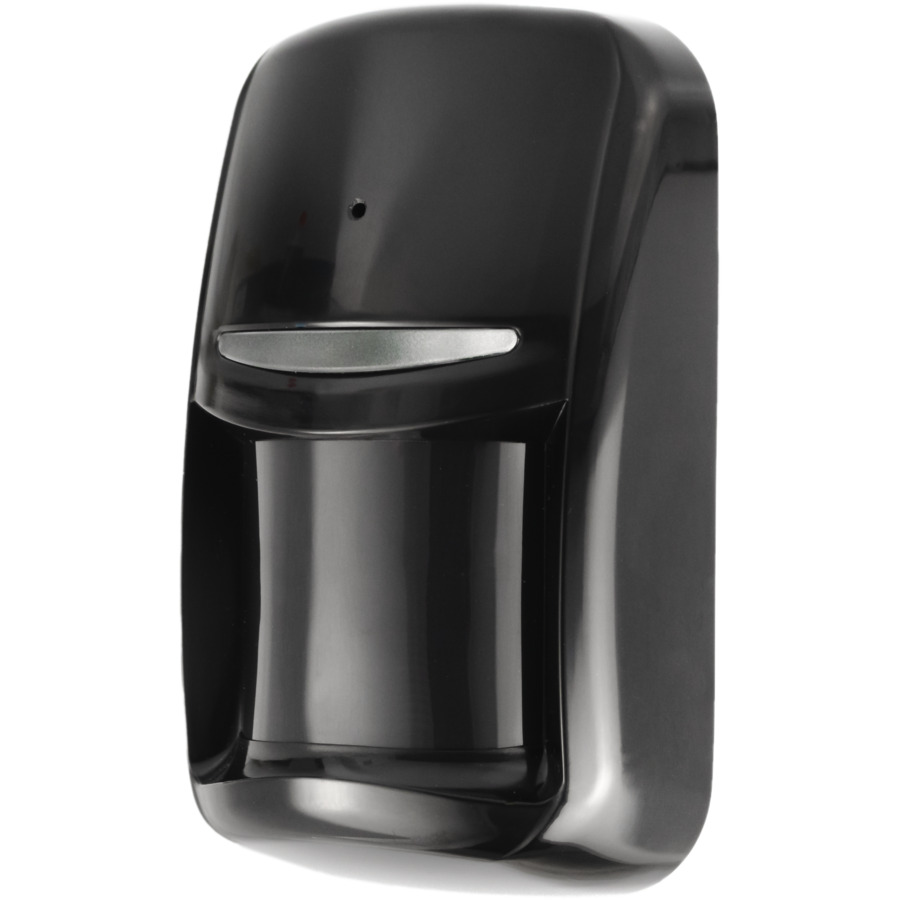

PIR Combi BL
U-PROX bezvadu kombinētais detektors (PIR+GBD) 12m 88° PET 20kg 868MHz
-50%
PIR Combi BL
U-PROX bezvadu kombinētais detektors (PIR+GBD) 12m 88° PET 20kg 868MHz
Kods: 012642
Noliktavā: Zvaniet
34.97 € / gab
69.94 € / gab
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
Preces rādītāji
Iekārtas parametri
Iekārtu kategorija
Ielaušanās aizsardzība
Kopējie parametri
Materiāls
Plastikāts
Krāsa
Melna
