| Use | Infrared barrier detector |
| Detection range | 300m indoor / 100m outdoor |
| Number of beams | 3 |
| Detection method | Interruption of the 3 beams at once |
| Interruption time | 50ms, 100ms, 300ms, 700ms (available) |
| Frequency channels | 4 different channels over DIP Switch |
| Alarm outputs | Alarm output NO/NC , tamper output NC, low battery output NC |
| Compatibility | Compatible with Ajax Transmitter module or Ajax DoorProtect/DoorProtect Plus external contact |
| Alignment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Power | Batteries ER34615H, includes 2 batteries (one for each barrier) |
| Autonomy | 3 years with one battery and 6 years with two batteries each barrier |
| Dimensions | 291 (H) x 91 (W) x 92 (D) mm |
| Installation | Exterior or interior, on wall or pole |

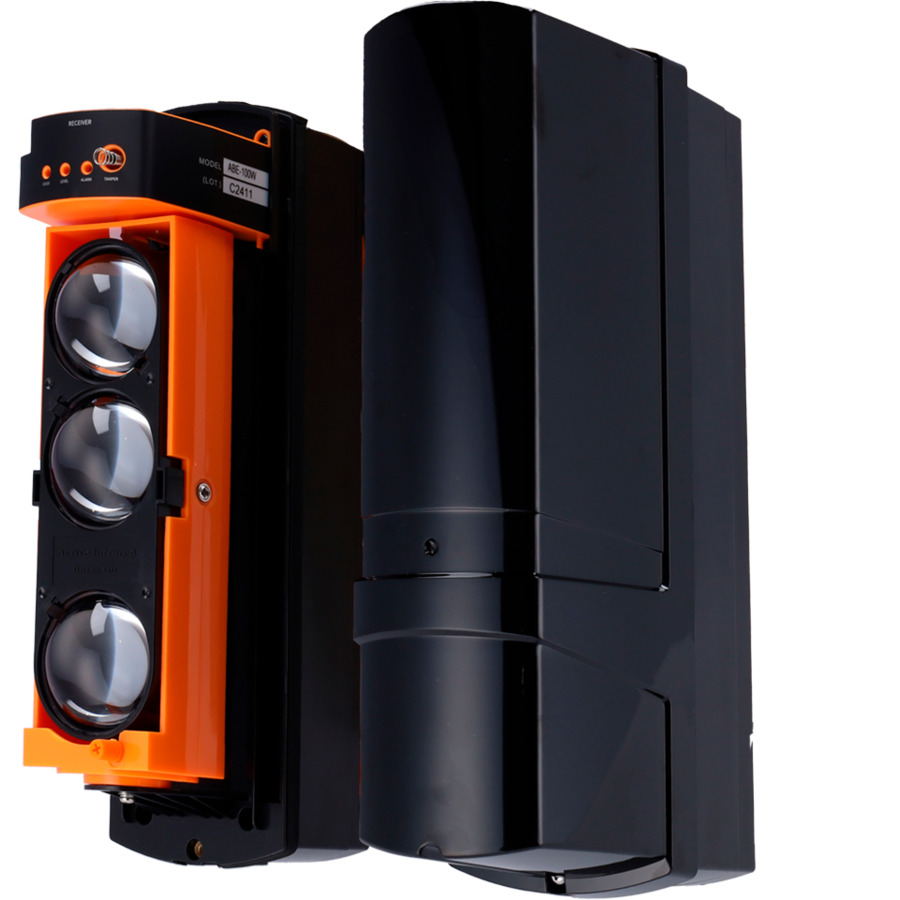

ABE-100W
Bezvadu infrasarkanā 3 staru barjēra 100m
ABE-100W
Bezvadu infrasarkanā 3 staru barjēra 100m
Kods: 012365
Noliktavā: Maz
117.50 € / kompl
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
