| Model | Bridging Performance | RSSI (dBm) | Throughput & Camera Limits | |||
| 3 MP | 4 to 5 MP | 6 to 7 MP | 7 to 8 MP | |||
| RG-EST100-E | 60 Mbps/100 meters (HT20) 30 Mbps/500 meters (HT20) |
–58 dBm/100 m –68 dBm/500 m |
10/100 m 5/500 m |
6/100 m 3/500 m |
3/100 m 1/500 m |
3/100 m 1/500 m |
| RG-EST310 V2 | 90 Mbps/100 meters (HT40) 80 Mbps/500 meters (HT40) 80 Mbps/1 km (HT40) 40 Mbps/2 km (HT40) |
–52 dBm/100 m –65 dBm/500 m –68 dBm/1 km –75 dBm/2 km |
16/100 m 16/500 m 16/1 km 6/2 km |
10/100 m 10/500 m 10/1 km 4/2 km |
7/100 m 7/500 m 7/1 km 3/2 km |
5/100 m 5/500 m 5/1 km 2/2 km |
| RG-EST350 V2 | 230 Mbps/1 km (HT40) 200 Mbps/3 km (HT40) 150 Mbps/5 km (HT40) |
–58 dBm/1 km –66 dBm/3 km –70 dBm/5 km |
50/1 km 45/3 km 20/5 km |
30/1 km 25/3 km 12/5 km |
20/1 km 13/3 km 8/5 km |
15/1 km 12/3 km 6/5 km |
| RG-AirMetro460G | 230 Mbps/1 km (HT40) 200 Mbps/3 km (HT40) 150 Mbps/5 km (HT40) 80 Mbps/10 km (HT40) |
–58/1 km –66/3 km –70/5 km –78/10 km |
50/1 km 45/3 km 20/5 km 16/10 km |
30/1 km 25/3 km 12/5 km 8/10 km |
20/1 km 13/3 km 8/5 km 5/10 km |
15/1 km 12/3 km 6/5 km 4/10 km |
| RG-AirMetro460F | 80 Mbps/1 km (HT40) 80 Mbps/3 km (HT40) 70 Mbps/5 km (HT40) 50 Mbps/10 km (HT40) |
–58/1 km –66/3 km –70/5 km –78/10 km |
12/1 km 12/3 km 10/5 km 6/10 km |
8/1 km 8/3 km 6/5 km 4/10 km |
6/1 km 6/3 km 5/5 km 3/10 km |
4/1 km 4/3 km 3/5 km 2/10 km |
| RG-AirMetro550G-B | 200 Mbps/1 km (HT40) 180 Mbps/3 km (HT40) 100 Mbps/5 km (HT40) |
-60/1 km -68/3 km -75/5 km |
35/1 km 30/3 km 16/5 km |
20/1 km 16/3 km 10/5 km |
15/1 km 12/3 km 6/5 km |
10/1 km 8/3 km 5/5 km |

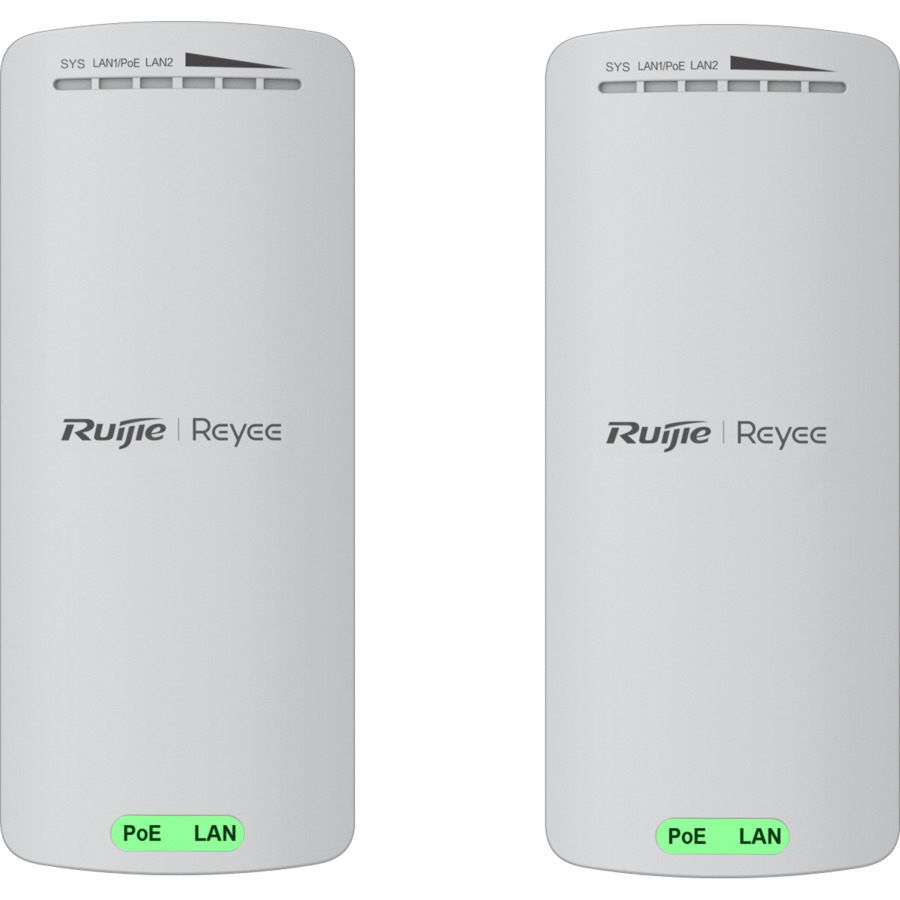

RG-EST100-E
Ārējo bezvadu tiltu komplekts (CPE) 2.4GHz 300Mbps 500m
RG-EST100-E
Ārējo bezvadu tiltu komplekts (CPE) 2.4GHz 300Mbps 500m
Kods: 011241
Noliktavā: Daudz
81.95 € / gab
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
Preces rādītāji
Iekārtas parametri
Iekārtas tips
Bezvadu tilts (CPE)
Pamatporti
2 x 10/100Mbit (FE)
Bezvadu tīkla standarti
802.11b/g/n
Darbības režīmi
Bezvadu tilts (CPE)
Darbības josla
2.4GHz
WiFi ātrums
300 Mbit
WiFi diapazons
2x2 MU-MIMO 8dBi
Signāla parraides attalums
500m
Instalācijas tips
Ārējais izpildījums
IP Aizsardzības klase
IP55
Pārsprieguma aizsardzība
6KV
Kopējie parametri
Krāsa
Balta
Materiāls
Plastikāts
Barošanas bloks
Iekļauts komplektā
Barošana
DC12V
Passive PoE 12V
Passive PoE 12V
Izmēri un svars
Garums (mm): 165.5
Platums (mm): 68.7
Augstums (mm): 42
Svars (g): 300
Platums (mm): 68.7
Augstums (mm): 42
Svars (g): 300
